LF 160 DRILL RIG & FREEDOM LOADER

GFS have recently purchased 4 new LF160 drilling rigs, we were the first in Australia to offer these hands-free drilling rigs.

4C Wireline Drilling

Gas Field Services is leading the way in innovation and safety with the implementation of 4C Wireline Drilling Technique on our hands-free drilling rigs.

SPECIALISED EQUIPMENT & CAPABILITIES

Our current fleet of 8 drilling rigs are capable of drilling various styles and holes sizes from 99mmm to 600mm to depth at over 1000 metres, using rotary, diamond and auger drilling practices and can be coupled with a pit-less drilling systems when required.

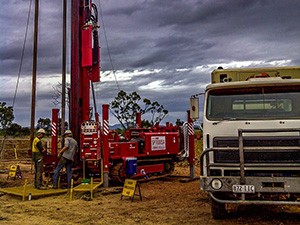

GFS runs 4 well servicing rigs to perform well workovers and new well installations to depths 1000 plus metres. The workover fleet are involved not only in maintaining a high standard of service to the gas fields, but also in gas drainage for underground mine development.

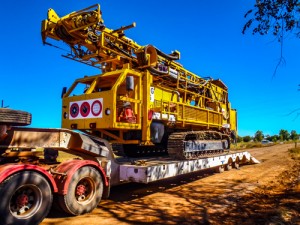

Rig 01 2018 Boart Longyear LF160 track mounted multi-purpose drill rig with Freedom Loader

0 – 1100 RPM Rotation head, 17t Pull back, Mast stays for angle drilling, Small operational footprint

Rig 02 2017 Boart Longyear LF160 track mounted multi-purpose drill rig with Freedom Loader

0 – 1100 RPM Rotation head, 17t Pull back, Mast stays for angle drilling, Small operational footprint

Rig 03 2011 SEMCO S30,000 Workover Rig

Telescopic mast, Mast capacity 60t-4L down position @ 1.8m mast lay back, 15t Pull Main winch (Single line), 2 speed winch

Rig 04 2013 C-Tech 70K Rapid Service Rig

70,000lb main winch, 8,000L Onboard water storage, Gardner Denver TEE-F triplex pump, 4” Bowie transfer pump, 22.5m Height below crown

Rig 05 2013 C-Tech 70K Rapid Service Rig

70,000lb main winch, 8,000L Onboard water storage, Gardner Denver TEE-F triplex pump, 4” Bowie transfer pump, 22.5m height below crown

Rig 05 2013 C-Tech 70K Rapid Service Rig

70,000lb main winch, 8,000L Onboard water storage, Gardner Denver TEE-F triplex pump, 4” Bowie transfer pump, 22.5m height below crown

Rig 06 2004 UDR 1000-90 Truck mounted multipurpose drill rig

20t pull back. 1000m HQ, KL Rod loader

Rig 08 2011 SEMCO S30,000 Workover Rig

Telescopic mast, Mast capacity 60t-4L down position @ 1.8m mast lay back, 15t Pull Main winch (Single line), 2 speed winch

Rig 09 2011 Desco SP7000 Multipurpose Drill Rig – Truck mounted

0 – 1250 RPM Rotation head, 30t Pull back, Mast stays for angle drilling

Rig 10 2012 Desco SP7000 Track mounted Multipurpose Drill Rig

0 – 1250 RPM Rotation head, 30t Pull back, Mast stays for angle drilling, Small operational footprint

Rig 11 2019 Boart Longyear LF160 track mounted multi-purpose drill rig with Freedom Loader

0 – 1100 RPM Rotation head, 17t Pull back, Mast stays for angle drilling, Small operational footprint

Rig 13 2020 Boart Longyear LF160 track mounted multi-purpose drill rig with Freedom Loader

0 – 1100 RPM Rotation head, 17t Pull back, Mast stays for angle drilling, Small operational footprint

Rig 14 Hydco 1200H Drill Rig – Truck mounted

1.5t Pull back, 15t Main winch, KL Rod loader, multi-purpose drill rig, RC drilling capabilities

Rig 16 Earthing Rig – Hino 4x4 mounted

Compact, portable drill unit, Down hole hammer capabilities

Rig 513 Soilmec A208 Auger Rig – Truck Mounted

1200mm diameter capability up to 40m depth

Rig 514 Soilmec R312/200 Auger Rig – Track Mounted

1500mm diameter capability up to 48m depth

A TRADITION OF EXCELLENCE

SAFETY

INNOVATION

QUALITY

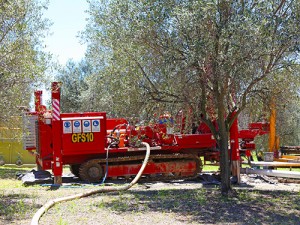

Gas Field Services has a fleet of 8 drilling rigs, 4 well servicing rigs for workovers and new well installations, 1 mobile custom built Borehole Grouting Unit and a fleet of vehicles including prime movers, 4 x water trucks and backhoes to meet a variety of transport requirements.

VERSATILITY – WE DO THE HARD WORK THE OTHERS DON’T WANT TO DO

LET US PROVIDE THE SOLUTIONS FOR YOUR NEXT PROJECT
